PRODUCTIVITY: Mankind 2020 Complete Bikes

German Precision for 2020

30 Jul 2019

Mankind Bikes are OFFICIAL DIG PARTNERS

We've got another dose of dialled complete bikes this week in our Productivity section, this time from Mankind Bikes. Scroll down to see through their wide selection of bikes, covering 16", 18" and 20" top tubes, with an additional XL size for the taller humans out there. Let's get into it...

2020 Mankind Libertad & Libertad XL

"The Mankind Libertad Bike gives you all you need, 100% Chromoly Frame, Fork & Bars and Fully Sealed Front Hubs, Bottom Bracket and Headset. Looking fresh in amazing colors and with it`s chrome bar and cranks theme the Libertad makes you want to go ride right away! Available in 20.5” and XL: 21.0” Top Tube versions, making it easy for you to find the size you need. You can´t always get what you want, but here you get what you need!" - Mankind

of 15

FRAME: 100% Chromoly Frame - MK SS Bridge– TT & DT Gusset

TOP TUBE: 20.5” – XL: 21.0”

CHAIN STAY: 13.25”

HEAD TUBE: 75°

SEAT TUBE: 71°

BB HEIGHT: 11.75”

STAND OVER: 9.0”

BRAKE MOUNTS: Removable Brake Mounts & Cable Stopper

FORK: 100% Chromoly - 1-PC Steerer, Tapered Legs, 28mm offset

BARS: 100% Chromoly - 8.9” Rise, Back: 12°/ Up: 2°, Width: 29.0”

GRIPS: Mankind Asadi Grips Flangeless

BAR ENDS: Mankind Nylon

STEM: Mankind Control Top Load Stem - Alloy - 50mm reach

HEADSET: Mankind Control Sealed Integrated

BRAKE: Alloy U-brake

BRAKE LEVER: Alloy Lever - 2-Finger Design - Hinged

REAR HUB: Mankind Control Cassette Hub – Sealed - 14mm axle - 9t Driver

FRONT HUB: Mankind Control Sealed - Female Axle

SPROCKET: Mankind Control Alloy 25t

CRANKS: Chromoly – 8 Spline - 3-Piece - 170mm - 19mm

BOTTOM BRACKET: Mid BB Sealed - 19mm

CHAIN: PYC 410 - black

PEDALS: Mankind Control Plastic

FRONT RIM: Alloy - Double Wall 36H

REAR RIM: Alloy - Double Wall 36H

SPOKES: Steel Spokes – 14mm nipples - black

FRONT TIRE: Shadow Strada Nuova LP 2.30”

REAR TIRE: Shadow Strada Nuova LP 2.30”

PEGS: None

SEAT: Mankind Libertad Mid Pivotal Seat

SEAT POST: Pivotal Seatpost Alloy

SEAT POST CLAMP: Integrated

COLORS: Gloss Grey, Gloss Trans Gold / XL: Gloss Black

WEIGHT: 11,70 kg

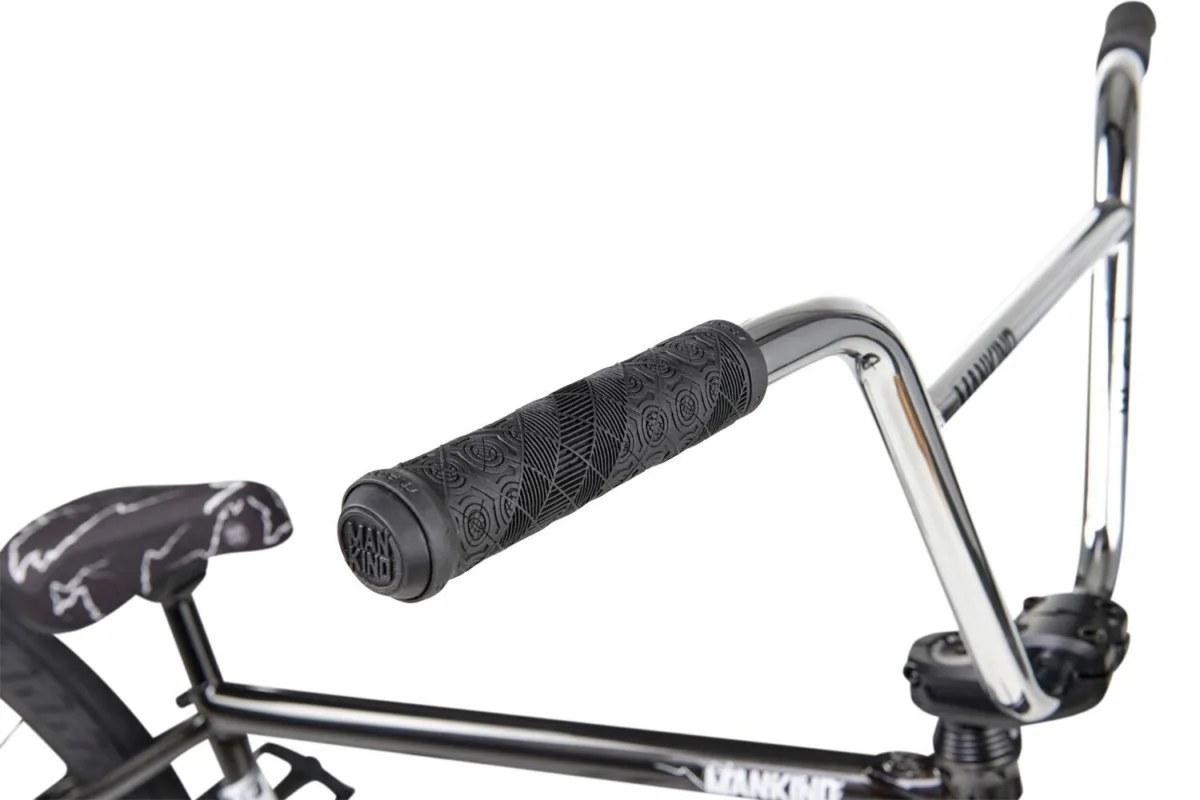

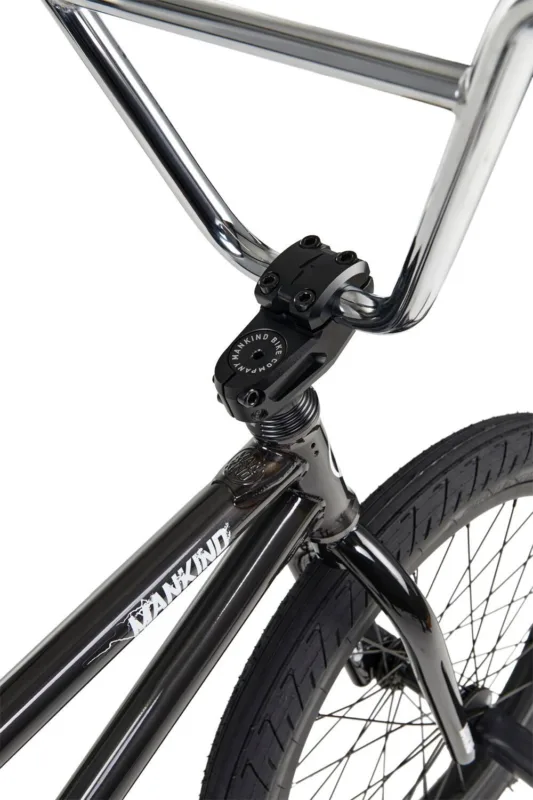

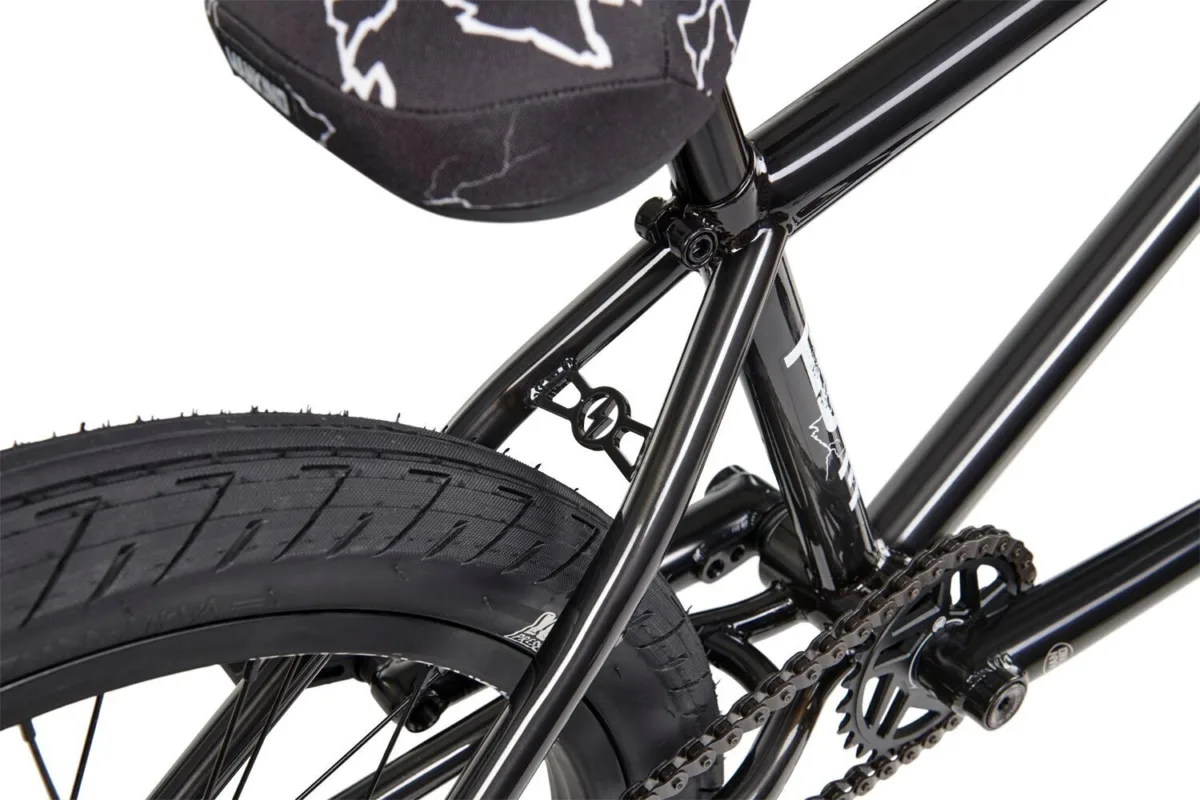

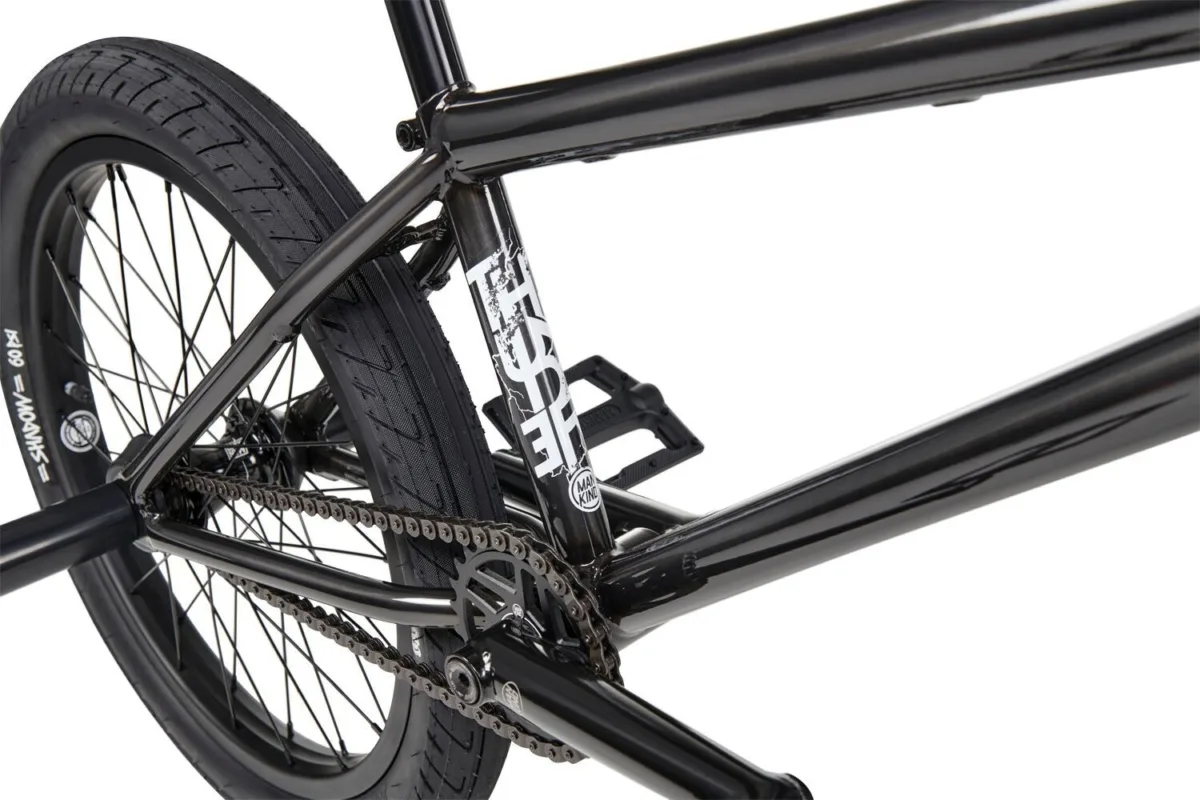

2020 Mankind Thunder

"The Mankind Thunder Bike is our top of the line street machine which this year has been updated with Mankind Vision Freecoaster and Vision Front Hub which both come with two plastic hub guards. The perfect frame geo with 21.0” Top Tube, 11.75” BB height, 9.0” stand over and 13.5” CS Length, comes along with a 8.9” rise bar and tapered forks with 25mm offset." - Mankind

of 14

FRAME: 100% Chromoly Frame - MK SS Bridge– TT & DT Gusset

TOP TUBE: 21.0”

CHAIN STAY: 13.5”

HEAD TUBE: 75°

SEAT TUBE: 71°

BB HEIGHT: 11.75”

STAND OVER: 9.0”

BRAKE MOUNTS: Removable Brake Mounts & Cable Stopper

FORK: 100% Chromoly - 1-PC Steerer, Tapered Legs, 28mm offset

BARS: 100% Chromoly - 8.9” Rise, Back: 12°/ Up: 2°, Width: 29.0”

GRIPS: Mankind Asadi Grips Flangeless

BAR ENDS: Mankind Nylon

STEM: Mankind Epoch Riser Stem - 50mm reach

HEADSET: Mankind Epoch Sealed Integrated

BRAKE: Alloy U-brake

BRAKE LEVER: Alloy Lever - 2-Finger Design - Hinged

REAR HUB: Mankind Vision Freecoaster Hub – Sealed - 14mm axle - 9t -2xHG

FRONT HUB: Mankind Vision Front Hub - Sealed - Female Axle -2xHub Guards

SPROCKET: Mankind Control Alloy 25t

CRANKS: Mankind INTL Chromoly – 48 Spline - 3-Piece - 170mm – 19mm

BOTTOM BRACKET: Mankind Epoch Mid BB Sealed - 19mm

CHAIN: Shadow Interlock V2 - black

PEDALS: Mankind Control Plastic

FRONT RIM: Mankind Vision Rim - Alloy - Double Wall 36H

REAR RIM: Mankind Vision Rim - Alloy - Double Wall 36H

SPOKES: Steel Spokes – 16mm nipples - black

FRONT TIRE: Shadow Strada Nuova LP 2.30”

REAR TIRE: Shadow Strada Nuova LP 2.30”

PEGS: Mankind Respect Plastic Pegs 2xPair

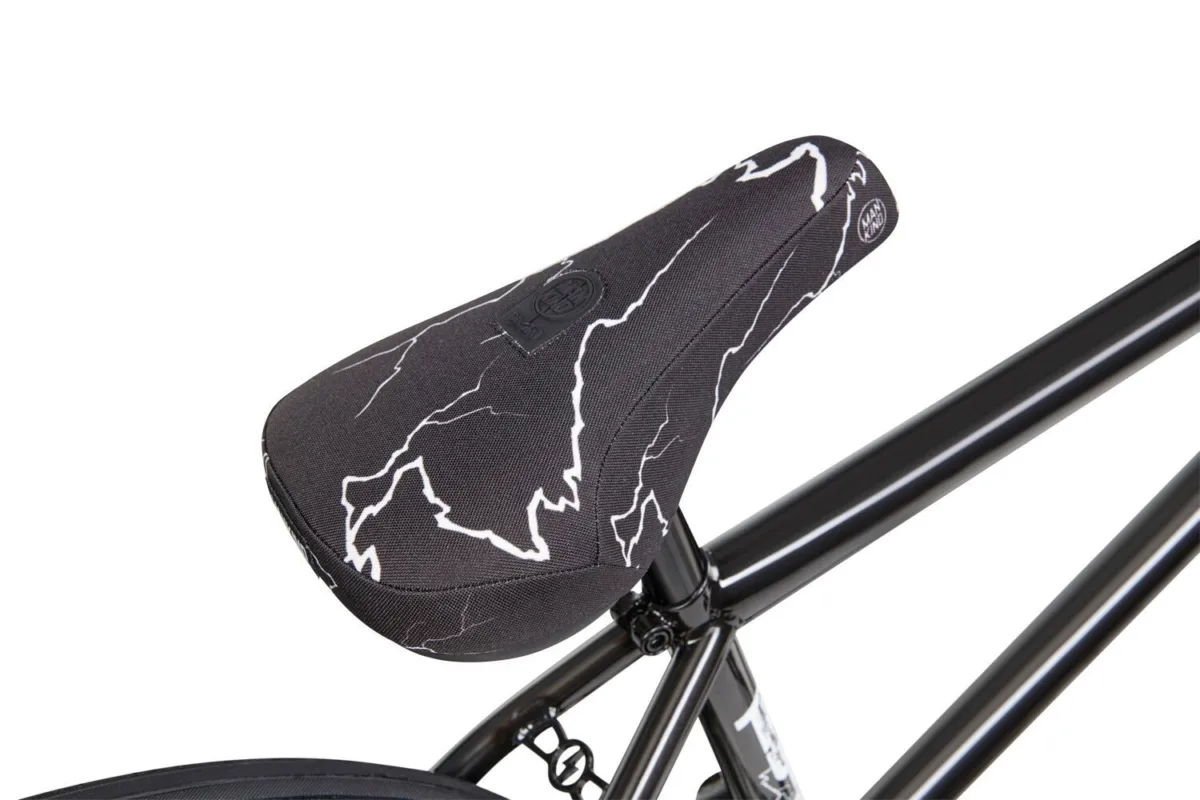

SEAT: Mankind Thunder V2 Mid Pivotal Seat

SEAT POST: Pivotal Seatpost Alloy

SEAT POST CLAMP: Integrated

COLORS: Gloss Trans Black

WEIGHT: 11,30 kg

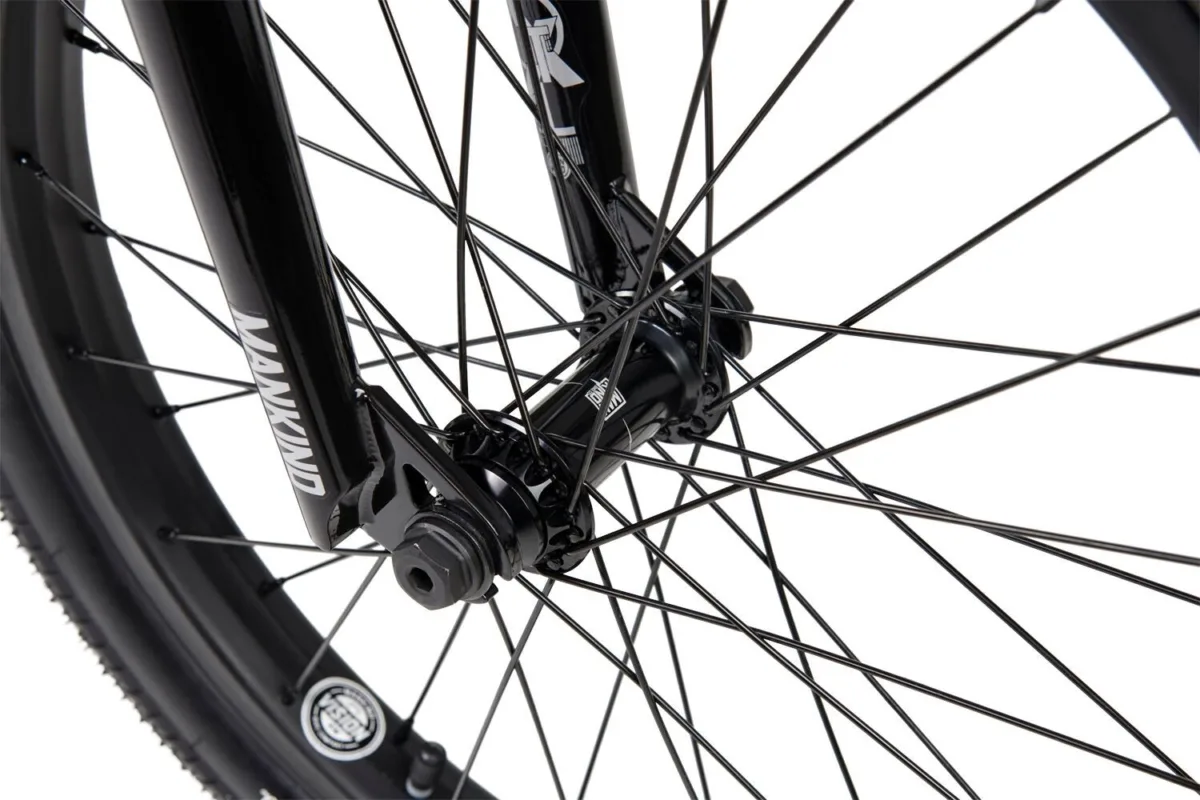

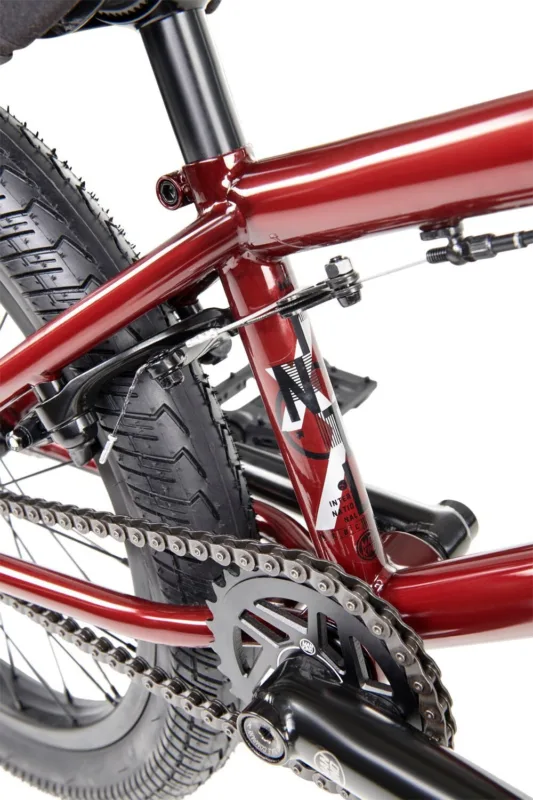

2020 Mankind International

"The Mankind International Bike is the perfect high end Park Bike packed with Mankind & Shadow aftermarket parts. For 2020 we have updated the frame geometry to a lower 7.4” stand over, the Mankind Vision Hubs and the new Mankind INTL 3-Piece Cranks. It´s not where you`re from, it`s where you`re at! Getaway with the International!" - Mankind

of 10

FRAME: 100% Chromoly Frame - MK SS Bridge– TT & DT Gusset

TOP TUBE: 20.75”

CHAIN STAY: 13.25”

HEAD TUBE: 75°

SEAT TUBE: 71°

BB HEIGHT: 11.5”

STAND OVER: 8.5”

BRAKE MOUNTS: Removable Brake Mounts & Cable Stopper

FORK: 100% Chromoly - 1-PC Steerer, Tapered Legs, 28mm offset

BARS: 100% Chromoly - 8.9” Rise, Back: 12°/ Up: 2°, Width: 29.0”

GRIPS: Mankind Asadi Grips Flangeless

BAR ENDS: Mankind Nylon

STEM: Mankind Epoch Front Load Stem - 48mm reach

HEADSET: Mankind Epoch Sealed Integrated

BRAKE: Alloy U-brake / Shadow Sano Detangler

BRAKE LEVER: Alloy Lever - 2-Finger Design - Hinged

REAR HUB: Mankind Vision Cassette Hub RHD – Sealed - 14mm axle - 9t

FRONT HUB: Mankind Vision Front Hub - Sealed - Female Axle

SPROCKET: Mankind Control Alloy 28t

CRANKS: Mankind INTL Chromoly – 48 Spline - 3-Piece - 170mm – 19mm

BOTTOM BRACKET: Mankind Epoch Mid BB Sealed - 19mm

CHAIN: Shadow Interlock V2 - black

PEDALS: Mankind Control Plastic

FRONT RIM: Mankind Vision Rim - Alloy - Double Wall 36H

REAR RIM: Mankind Vision Rim - Alloy - Double Wall 36H

SPOKES: Steel Spokes – 16mm nipples - black

FRONT TIRE: Shadow Valor LP 2.40”

REAR TIRE: Shadow Valor LP 2.40”

PEGS: None

SEAT: Mankind International Mid Pivotal Seat

SEAT POST: Pivotal Seatpost Alloy

SEAT POST CLAMP: Integrated

COLORS: Gloss Trans Red

WEIGHT: 11,90 kg

2020 Mankind NXS 20" & NXS 20" XL

"The Mankind NXS Bike combines great looks with amazing specs! The NXS is our most popular model being a perfect model to start riding at a great price point. The NXS is available 18” and 20”. The NXS 20” is further available in JR: 20.0”, 20.5” and XL: 21.0” Top Tube versions, making it easy for you to find the size you need. Connect with the NXS to begin your journey into the world of BMX!" - Mankind

of 16

FRAME: 1020 Hi-Ten Steel Frame - Top & Down Tube Gusset

TOP TUBE: 20.5” – JR: 20.0” – XL: 21.0”

CHAIN STAY: 13.25”

HEAD TUBE: 75°

SEAT TUBE: 71°

BB HEIGHT: 11.5”

STAND OVER: 8.5”

BRAKE MOUNTS: Welded

FORK: 1020 Hi-Ten Steel - 1-PC Steerer, Tapered Legs, 28mm offset

BARS: 1020 Hi-Ten Steel, 8.5” Rise, Back: 12°/ Up: 2°, Width: 28.5”

GRIPS: Mankind Asadi Grips

BAR ENDS: Mankind Nylon

STEM: Mankind Control Top Load Stem - Alloy - 50mm reach

HEADSET: Mankind Control Sealed Integrated

BRAKE: Alloy U-brake

BRAKE LEVER: Alloy Lever - 2-Finger Design

REAR HUB: Mankind Control Cassette Hub – Sealed - 14mm axle - 9t Driver

FRONT HUB: Alloy - Loose Ball - 3/8” axle

SPROCKET: Mankind Control Steel 25t

CRANKS: Chromoly – 8 Spline - 3-Piece - 170mm - 19mm

BOTTOM BRACKET: Mid BB Sealed - 19mm

CHAIN: PYC 410 - black

PEDALS: Plastic Platform

FRONT RIM: 6061 Alloy - Single Wall 36H

REAR RIM: 6061 Alloy - Single Wall 36H

SPOKES: Steel Spokes – 14mm nipples - black

FRONT TIRE: Park/Street Tire LP 60 PSI - 2.3”

REAR TIRE: Park/Street Tire LP 60 PSI - 2.3”

PEGS: None

SEAT: Mankind NXS Mid Seat/Post Combo

SEAT POST: Seat/Post Combo

SEAT POST CLAMP: Mankind Control Alloy - black

COLORS: Gloss Black, Gloss Tangerine, Gloss Blue, JR:Gloss Black, XL:Gloss Black, Gloss Metal Grey

WEIGHT: 10,70 kg

2020 Mankind NXS 18"

"The Mankind NXS 18” Bike combines great looks with amazing specs! The NXS 18” is our most popular model being a perfect model to start riding at a great price point. The NXS 18” is suitable for riders from about 125cm to 150cm and from appr. seven to twelve years of age. Connect with the Nexus to begin your journey into the world of BMX!" - Mankind

of 12

FRAME: 1020 Hi-Ten Steel Frame - Top & Down Tube Gusset

TOP TUBE: 18.0”

CHAIN STAY: 12.25”

HEAD TUBE: 75°

SEAT TUBE: 71°

BB HEIGHT: 10.5”

STAND OVER: 7.5”

BRAKE MOUNTS: Welded

FORK: 1020 Hi-Ten Steel - 1-PC Steerer, Tapered Legs, 28mm offset

BARS: 1020 Hi-Ten Steel, 7.75” Rise, Back: 10°/ Up: 3°, Width: 26.0”

GRIPS: Mankind Asadi Grips

BAR ENDS: Mankind Nylon

STEM: Mankind Control Top Load Stem - Alloy - 40mm reach

HEADSET: Mankind Control Sealed Integrated

BRAKE: Alloy U-brake

BRAKE LEVER: Alloy Lever - 2-Finger Design

REAR HUB: Mankind Control Cassette Hub – Sealed - 14mm axle - 9t Driver

FRONT HUB: Alloy - Loose Ball - 3/8” axle

SPROCKET: Mankind Control Steel 25t

CRANKS: Chromoly – 8 Spline - 3-Piece - 155mm - 19mm

BOTTOM BRACKET: Mid BB Sealed - 19mm

CHAIN: PYC 410 - black

PEDALS: Plastic Platform

FRONT RIM: 6061 Alloy - Single Wall 36H

REAR RIM: 6061 Alloy - Single Wall 36H

SPOKES: Steel Spokes – 14mm nipples - black

FRONT TIRE: Park/Street Tire LP 60 PSI - 2.1”

REAR TIRE: Park/Street Tire LP 60 PSI - 2.1”

PEGS: None

SEAT: Mankind NXS Mid Seat/Post Combo

SEAT POST: Seat/Post Combo

SEAT POST CLAMP: Mankind Control Alloy - black

COLORS: Gloss Black, Gloss Tangerine

WEIGHT: 10,00 kg

2020 Mankind Planet 20"

"The Planet 20” Bike is our entry level, beginner bike for the younger and smaller rider. Therefore we have designed size, geometry and weight in order to make it as ideal as possible to learn to ride BMX and to have a great time. The Planet is available in 16” and 20”. The Planet 20” has a shorter 20.0” Top Tube and lower 8.25” bar for an easy and direct handling for the younger rider from about 150cm of size on." - Mankind

of 14

FRAME: 1020 Hi-Ten Steel Frame - Top & Down Tube Gusset

TOP TUBE: 20.0”

CHAIN STAY: 13.25”

HEAD TUBE: 75°

SEAT TUBE: 71°

BB HEIGHT: 11.5”

STAND OVER: 8.3”

BRAKE MOUNTS: Welded

FORK: 1020 Hi-Ten Steel - 2-PC Steerer, Tapered Legs, 28mm offset

BARS: 1020 Hi-Ten Steel, 8.25” Rise, Back: 12°/ Up: 2°, Width: 28.3”

GRIPS: Mankind Asadi Grips

BAR ENDS: Mankind Nylon

STEM: Mankind Control Top Load Stem - Alloy - 50mm reach

HEADSET: Standard 1-1/8” Threadless

BRAKE: Alloy U-brake

BRAKE LEVER: Alloy Lever - 2-Finger Design

REAR HUB: Mankind Control Cassette Hub – Semi Sealed - 14mm axle - 9t

FRONT HUB: Steel - Loose Ball - 3/8” axle

SPROCKET: Mankind Control Steel 25t

CRANKS: Chromoly – 8 Spline - 3-Piece - 170mm - 19mm

BOTTOM BRACKET: American Loose Ball - 19mm

CHAIN: PYC 410 - black

PEDALS: Plastic Platform 9/16”

FRONT RIM: 6061 Alloy - Single Wall 36H

REAR RIM: 6061 Alloy - Single Wall 36H

SPOKES: Steel Spokes – 14mm nipples - black

FRONT TIRE: Park/Street Tire LP 60 PSI - 2.3”

REAR TIRE: Park/Street Tire LP 60 PSI - 2.3”

PEGS: None

SEAT: Mankind Planet Mid Seat/Post Combo

SEAT POST: Seat/Post Combo

SEAT POST CLAMP: Mankind Alloy - black

COLORS: Semi Matte Black, Semi Matte Orange

WEIGHT: 10,60 kg

2020 Mankind Planet 16"

"The Planet 16” Bike is our entry level, beginner bike for our youngest rider. Therefore we have designed size, geometry and weight in order to make it as ideal as possible to learn to ride BMX and to have a great time. The Planet 16” is suitable for riders from about 110cm to 140cm and from appr. five to nine years of age." - Mankind

of 14

FRAME: 1020 Hi-Ten Steel Frame - Top & Down Tube Gusset

TOP TUBE: 16.5”

CHAIN STAY: 11.20”

HEAD TUBE: 75°

SEAT TUBE: 71°

BB HEIGHT: 9.75”

STAND OVER: 6.6”

BRAKE MOUNTS: Welded

FORK: 1020 Hi-Ten Steel - 2-PC Steerer, Tapered Legs, 28mm offset

BARS: 1020 Hi-Ten Steel, 7.0” Rise, Back: 10°/ Up: 3°, Width: 23.5”

GRIPS: Mini Ribbed

BAR ENDS: Nylon

STEM: Mankind Control Top Load Stem - Alloy - 40mm reach

HEADSET: Standard 1-1/8” Threadless

BRAKE: Alloy U-brake

BRAKE LEVER: Alloy Lever - 2-Finger Design

REAR HUB: Mankind Control Cassette Hub – Semi Sealed - 14mm axle - 9t

FRONT HUB: Steel - Loose Ball - 3/8” axle

SPROCKET: Mankind Control Steel 25t

CRANKS: Alloy – 4 Spline - 3-Piece - 127mm - 19mm

BOTTOM BRACKET: Euro BB sealed - 19mm

CHAIN: PYC 410 - black

PEDALS: Plastic Platform

FRONT RIM: 6061 Alloy - Single Wall 36H

REAR RIM: 6061 Alloy - Single Wall 36H

SPOKES: Steel Spokes – 14mm nipples - black

FRONT TIRE: Park/Street Tire 16” - LP 60 PSI - 2.1”

REAR TIRE: Park/Street Tire 16” - LP 60 PSI - 2.1”

PEGS: None

SEAT: Mankind Planet Mid Seat/Post Combo

SEAT POST: Seat/Post Combo

SEAT POST CLAMP: Mankind Alloy - black

COLORS: Semi Matte Black, Semi Matte Orange

WEIGHT: 8,90 kg

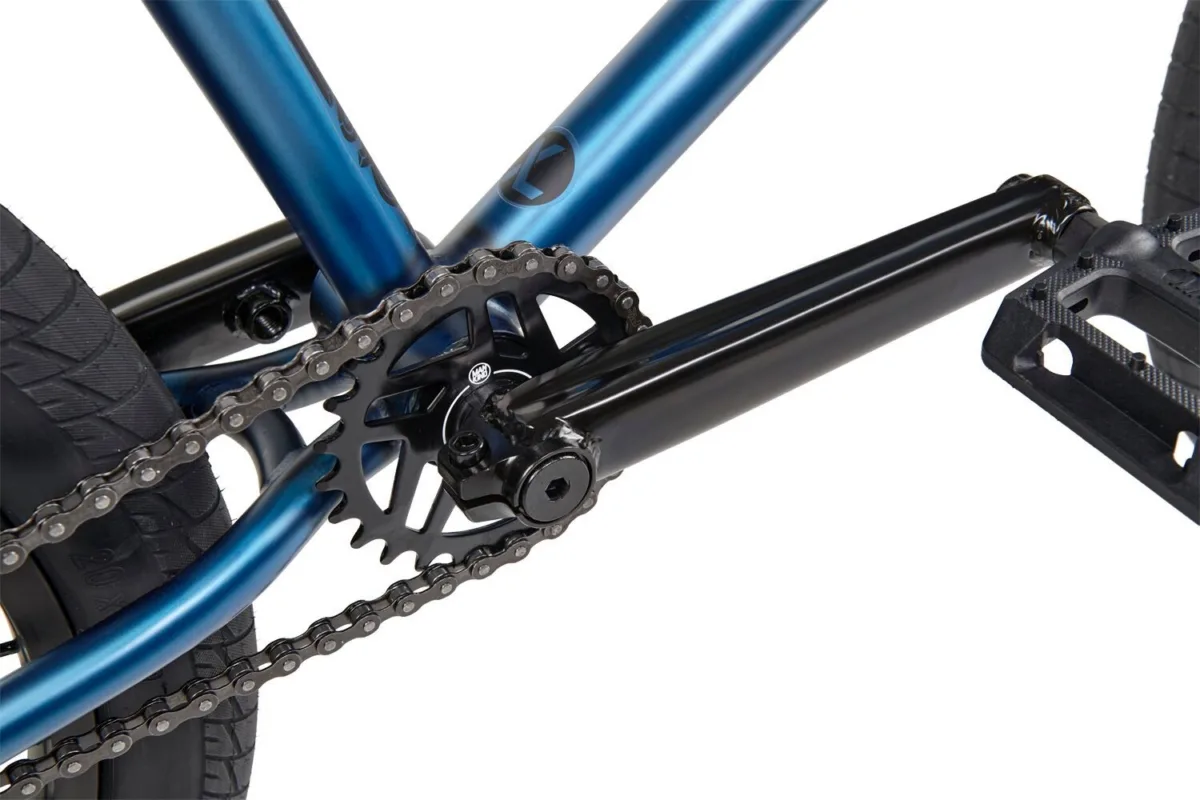

2020 Mankind Sureshot & Sureshot XL

"The Sureshot is our new model in the new 2020 bike line and the name says it all! The Sureshot is a great value priced model equipped with many Mankind aftermarket parts and also the new Shadow Serpent Tires 2.3”. This bike is designed to be a allround, allterrain machine with a quick and responsive geometry and handling." - Mankind
